Oxford Instruments spare parts, consumables and accessories for a variety of applications

AutoProbe™ 300/400 tips for in-situ tip exchange (box of 20)

A box of 20 In-situ probe tips for the Omniprobe AutoProbe™ 300/400 systems - they have a custom tungsten tip with a stainless steel shank for use with the AutoProbe™ 300/400, in-situ probe tip exchange systems and is Short-Cut™ compatible. Tip radius is 0.5 µm with 8-10° taper angle.

ID PT-0001.03.01

$ 651.00

Quantity Discounts:
Buy 5 items ($ 553.35 each)
Buy 10 items ($ 488.25 each)

AutoProbe™ 300/400 Keyed Probe Tips (Box of 20)

Custom designed tungsten keyed probe tips for the Omniprobe AutoProbe™ 300/400 systems with a reduced collar diameter to accomodate the 50 elevation angle on the FEI Helios front port systems. Supplied in a 20 pack.

ID PT-0001.13.01

$ 388.00

3 Post Omniprobe® Moly Lift-Out Grids (Box of 25)

Omniprobe® 3 post molybdenum lift-out grids specifically designed for in-situ lift-out. They include multiple indexed mounting locations, two with vertical bars attachment surfaces and two with “V” shaped alignment surfaces.

ID GRD-0001.02.01-01

$ 352.00

Quantity Discounts:
Buy 5 items ($ 299.20 each)
Buy 10 items ($ 264.00 each)

3 Post Omniprobe® Copper Grids (Box of 100)

A box of 100 Omniprobe^® 3 post copper lift-out TEM grids which have been specifically designed for in-situ lift-out. These copper grids include multiple indexed mounting locations with both vertical bars and “V” shaped attachment surfaces and have a 3mm diameter.

ID GRD-0001.01.01-01

$ 244.00

Quantity Discounts:
Buy 5 items ($ 207.40 each)
Buy 10 items ($ 183.00 each)

Rotary Grid Storage Box for 25 TEM grids

Rotary Grid Storage box that has been designed with the microscopist in mind that stores 25 TEM Grids. They are ideal for both working labs and for longer-term storage.

ID 51-1625-0882

$ 6.32

AutoProbe™ 200/100.7 Standard Width Probe Tip (Box of 10)

Omniprobe AutoProbe™ 200/100.7 standard width probe tips in an all tungsten design with tip radius of 0.5µm. Supplied in a box of 10.

ID PT-0001.02.01-01

$ 143.00

Quantity Discounts:
Buy 5 items ($ 121.55 each)
Buy 10 items ($ 107.25 each)

Omniprobe® Beryllium half-ring grids

Omniprobe^® Simple beryllium half ring grids, 3mm diameter. The metal is unaffected by air or water, even at red heat. Thickness (nominal) : 25 μm.

ID GRD-0001.03.01-01

$ 594.00

AutoProbe™ 300/400 Keyed Probe Tips for FEI Helios Front Port (Box of 20)

Custom keyed probe tips for the Omniprobe AutoProbe™ 300/400 systems with a flat on the reduced collar diameter to accomodate the 50 elevation angle on the FEI Helios front port systems.

ID PT-0001.15.01

$ 405.00

4 Post Omniprobe® Copper Lift-out Grids (Box of 100)

A box of 100 Omniprobe® 4 post copper TEM lift-out grids specifically designed for in-situ lift-out. These grids include multiple indexed mounting locations, two with vertical bar attachment surfaces and two with "V" shaped alighment surfaces.

ID GRD-0001.05.01-01

$ 244.00

Quantity Discounts:
Buy 5 items ($ 207.40 each)
Buy 10 items ($ 183.00 each)

AutoProbe™ 200/100.7 Nickel Shank Tungsten Tip (Box of 10)

Box of 10 custom made Omniprobe AutoProbe™ probe tips designed with a nickel tube shank and tungsten tip. Tip radius is 0.5µm with 13° taper angle for maximum lifetime service.

ID PT-0001.01.01-01

$ 289.00

Quantity Discounts:
Buy 5 items ($ 245.65 each)
Buy 10 items ($ 216.75 each)

AutoProbe™ 200/100.7 Narrow width Probe Tip (Box of 10)

Box of 10 custom dual taper narrow width sharp tip made from tungsten. The tip radius is 0.5 µm with 8 to 10° taper angle for maximum lifetime service. For use with Omniprobe AutoProbe™ 200 and 100 systems.

ID PT-0001.09.01-01

$ 241.00

Quantity Discounts:
Buy 5 items ($ 204.85 each)
Buy 10 items ($ 180.75 each)

Omniprobe® OP400L Low-Magnetic Low Profile Tip

OmniProbe® 400L Low-Magnetic Low profile BX20 probe tips for in situ.
Low profile dual taper design includes these features: 6° taper angle with a tip .

ID 51-1143-032

$ 843.00

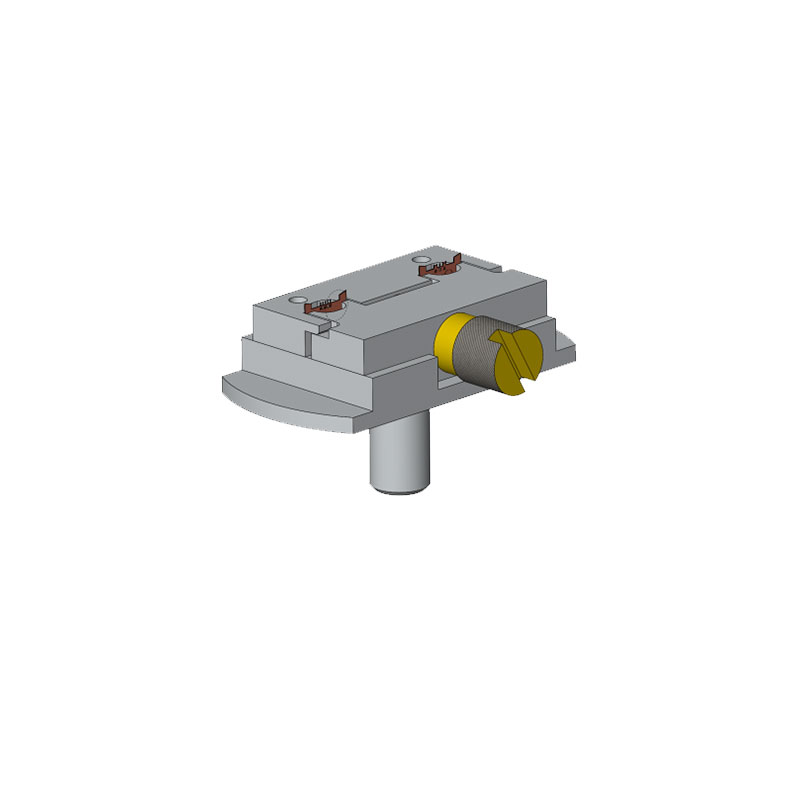

Omniprobe® Low Profile Dual TEM Grid Holder

The Omniprobe® Low Profile Double TEM Grid Holder holds two lift-out grids and has a spring-loaded jaw for easy unloading.

ID TGH-0001.23.00

$ 1,050.00

AutoProbe™ 300/400 Probe Tips for FEI SDB Front Port (Box of 20)

Custom made OmniProbe AutoProbe™ 300 400 Probe Tips for FEI SDB Front Port. In-situ width (Tungsten) needle with stainless steel shank. Supplied in a box of 20.

ID PT-0001.14.01

$ 790.00

Quantity Discounts:
Buy 5 items ($ 671.50 each)
Buy 10 items ($ 592.50 each)

4 Post Omniprobe® Copper Lift-out grids (Box of 100)

Box of 100 Omniprobe® 4 post copper TEM lift-out grids specifically designed for in-situ lift-out. These grids include multiple indexed mounting locations, and have lower profile sides for easier access to outermost posts.

ID GRD-0001.10.01-01

$ 146.00

Quantity Discounts:
Buy 5 items ($ 124.10 each)
Buy 10 items ($ 109.50 each)

4 Post Omniprobe® Moly Lift-Out Grids (Box of 25)

A box of 25 Omniprobe® 4-post lift-out grids for in-situ lift-out. These grids include multiple indexed mounting locations, two with vertical bars attachment surfaces and two with "V" shaped alignment surfaces. Made from Molybdenum.

ID GRD-0001.06.01

$ 352.00

Quantity Discounts:
Buy 5 items ($ 299.20 each)
Buy 10 items ($ 264.00 each)

5 Post Omniprobe® Copper Lift-Out Grids (Box of 100)

5 post Omniprobe® copper lift-out TEM grids specifically designed for in-situ lift-out. These grids include multiple indexed mounting locations, all with vertical bar attachment surfaces. They now come with lower profile sides for easier access to outermost posts.

ID GRD-0001.09.01

$ 156.00

Quantity Discounts:
Buy 5 items ($ 132.60 each)
Buy 10 items ($ 117.00 each)

3 Post Omniprobe® Copper Grids, Shallow downset (Box of 100)

Omniprobe^®3 post copper TEM lift-out grids which have been designed for in-situ lift-out. These grids have been designed for optimum access and include multiple indexed mounting locations with both vertical bars and “V” shaped attachment surfaces and have a shallower downset than other grids. 3mm diameter.

ID GRD-0001.08.01-01

$ 146.00

Quantity Discounts:
Buy 5 items ($ 124.10 each)
Buy 10 items ($ 109.50 each)

AutoProbe™ 400L Low-Magnetic probe tips for in-situ tip exchange (non-Helios)

Low-Magnetic 11mm custom etch design. Custom made In-situ probe tips for OmniProbe® AutoProbe™ 300/400L systems for tip exchange. Tungsten tip with stainless steel shank, tip radius is 0.5µm with an 8-10° taper angle.

ID PT-0001.16.01

$ 1,036.00

Quantity Discounts:
Buy 10 items ($ 777.00 each)

5 Post Omniprobe® Copper Lift-Out Grids (Box of 100)

A box of 100 Omniprobe^® 5 post copper lift-out TEM grids specifically designed for in-situ lift-out. These CU grids include multiple indexed mounting locations, all with vertical bar attachment surfaces. Now with lower profile sides for easier access to outermost posts.

ID GRD-0001.04.02

$ 268.00

Quantity Discounts:
Buy 5 items ($ 227.80 each)
Buy 10 items ($ 201.00 each)

AutoProbe™ 250 & 200 Equipped with Short-Cut-Box (Box of 10)

Custom made probe tips for the AutoProbe™ 250 & 200 systems. Compatible with short-cut system. All-tungsten design with a 0.508mm (0.020") shank diameter. The tip radius better than 0.5µm with a taper of 6° taper angle for greater precision.

ID PT-0001.05.01

$ 195.00

Quantity Discounts:
Buy 5 items ($ 165.75 each)
Buy 10 items ($ 146.25 each)

Omniprobe Xtreme Access Short-Cut™ probe tips, 6deg taper angle (10)

A box of Omniprobe Xtreme Access Short-Cut probe tips with a 6 degree taper angle. Custom tip designed from tungsten. Tip radius is < 0.5 µm with 6° taper angle for maximum lifetime service.

ID PT-0001.06.01

$ 190.00

Omniprobe® Lift Out Grid Storage Box

Omniprobe® Storage box that stores 100 FIB lift out grids or can also store standard 3mm TEM grids flat. Comes complete with base, lid and clips. Overall size is 55 x 51 x 10.7mm (2.16" x 2" x 0.42")

ID GSB-0001.01.01-01

$ 41.00

3 Post Omniprobe® Copper Grids, side access (Box of 100)

Omniprobe^® 3 post copper lift-out TEM grids, 35 micron thick with 1 edge lower for easy access. These grids are similar to GRD-0001.08.01 with one lower side. They come packaged in glass vials.

ID GRD-0001.07.01

$ 146.00

Quantity Discounts:
Buy 5 items ($ 124.10 each)
Buy 10 items ($ 109.50 each)
