AFM PROBES CATALOG

This product is a direct replacement to the discontinued OLYMPUS AC200TS

Silicon probe with visible apex tip for soft tapping, force modulation, or bimodal imaging on medium to hard samples.  Each pack contains 10 probes.

This product is a direct replacement to the discontinued OLYMPUS AC160TSA-R3

Tapping / Non-Contact - Silicon Probe with visible apex tip.  Each pack contains 10 probes.

This product is a direct replacement to the discontinued OLYMPUS AC240TSA-R3

Tapping / Non-Contact / Force Modulation - Silicon Probe with visible apex tip. Each pack contains 10 probes

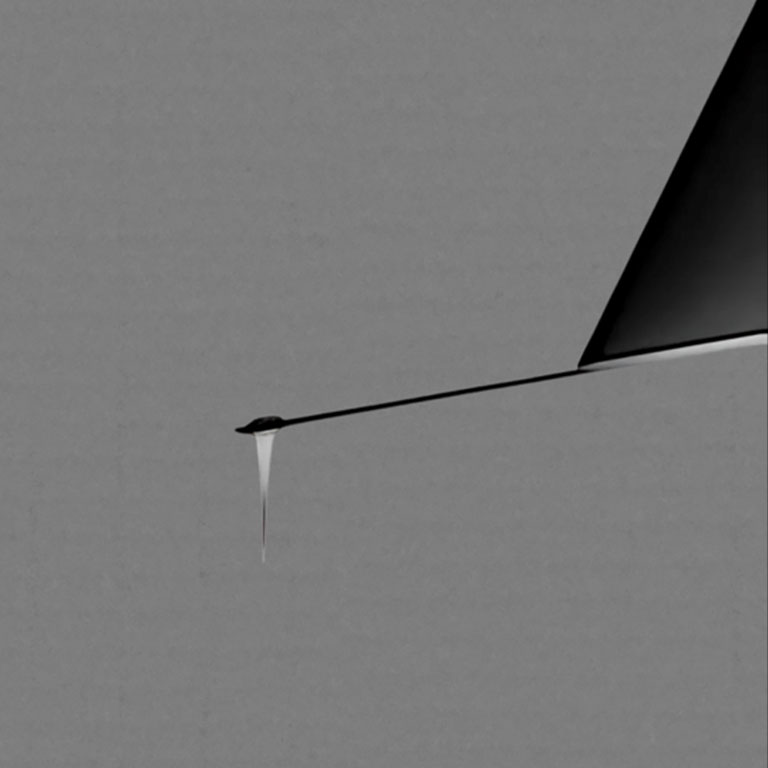

This product is a direct replacement to the discontinued OLYMPUS AC55TS

Fast scanning and high-resolution imaging probe with visible apex tip ideal for imaging semiconductor samples. Each pack contains 10 probes.

Tapping / Non-Contact - Silicon Probe with Al reflex coating. Each pack contains 10 probes.

Pre-mounted on carriers for use with Jupiter Discovery AFMs. Ideal for general tapping modes. Each Pack contains 20 pre-mounted probes.

Pre-mounted on carriers for use with Jupiter Discovery AFMs. Ideal for general soft tapping and FFM-Topography modes. Each pack contains 20 pre-mounted probes.

Fast-Scanning High-Frequency Silicon probe. Each pack contains 10 probes.

Fast-Scanning High-Frequency Silicon probe.  Each pack contains 10 probes.

Tapping / Non-Contact / Force Modulation - Silicon Probe with Al reflex coating. Each pack contains 10 probes.

Asylum electrolever tip with conductive coating for nano-electrical measurements. Each pack contains 10 probes.

Asylum electrolever tip with conductive coating for nano-electrical measurements. Each pack contains 10 probes.

New and improved Oxford exclusive probe coated with high coercivity material for Magnetic Force Microscopy (MFM) measurements of challenging materials. Each pack contains 10 probes.

Silicon probe with visible tip apex and magnetic coating for standard MFM applications. Each pack contains 10 probes.

Silicon probe with visible tip apex and magnetic coating for high moment MFM applications. Each pack contains 10 probes.

Magnetically coated visible tip apex silicon probe for low coercivity MFM measurement. 75 kHz. 2.8 N/m. Each pack contains 10 probes.

Silicon probe with visible tip apex and magnetic coating for low moment MFM applications.
Each pack contains 10 probes.

Tapping / Non-Contact - Etched Silicon Probe with Al reflex coating. Each pack contains 10 probes.

OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the ASYVIP TITAN 300 Al.

NOTICE: OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the TITAN 300 Au.

NOTICE: OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the TITAN 150 Al.

NOTICE: OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the TITAN 70 Pt

NOTICE: OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the TITAN 70 Al

NOTICE: OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the TITAN 70 Au

Tapping / Non-Contact - Silicon AFM Probe with Al reflex coating. Each pack contains 10 probes.

This product is a direct replacement to the discontinued Kelvin Nanotechnology KNT-STHM.

NOTICE: This product is recommended for qualitative or relative measurements of variations in local temperature or thermal conductivity up to 150 C. It is not recommend for quantitative or accurate local temperature measurements, especially exceeding 60 C, as results are generally inconsistent even if calibration is attempted against known sample temperatures.​

Biosphere FM probes are available with sphere radii from 20 to 2000 nm. Each pack contains 5 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Choose your desired sphere size from the drop down menu and full product details will be displayed in the long description below:

Tapping / Non-Contact - Silicon AFM Probe with Al reflex coating. Each pack contains 10 probes.

15 um long carbon tip with 25 nm radius on soft qp-BioAC cantilever; For enhanced accessibility to subjacent regions of tall biosamples. Each pack contains 5 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Silicon probe with tip at the end of cantilever and PtIr coating for contact mode. Each pack contains 10 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Silicon probe. 6 kHz. 0.03 N/m. Tipless cantilever; dual lever at 250um pitch. Each pack contains 10 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

200 nm long carbon tip with 2 nm radius on soft qp-BioAC probe; Designed for gentle, high resolution bioimaging. Each pack contains 5 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Biosphere CONT probes are available with sphere radii from 20 to 2000 nm. Each pack contains 5 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Choose your desired sphere size from the drop down menu and full product details will be displayed in the long description below:

Silicon probe; arrow shaped; tipless cantilever; dual lever at 250um pitch; Au coated. Each pack contains 10 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Biosphere NCH probes are available with sphere radii from 20 to 2000 nm. Each pack contains 5 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Choose your desired sphere size from the drop down menu and full product details will be displayed in the long description below

Carbon tip with 25 nm radius on soft qp-BioAC quartz probe; For gentle imaging of force-sensitive samples.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

This pack contains 5 probes.

Tapping / Non-Contact - Silicon AFM Probe with Au reflex coating. Each pack contains 10 probes.

High Aspect Ratio - Tapping / Non-Contact Silicon Probe with Au reflex coating. Each pack contains 10 probes.

High Aspect Ratio - Tapping / Non-Contact Silicon Probe with Al reflex coating. Each pack contains 10 probes

Silicon probe with tip at the end of cantilever and no reflex coating for force modulation mode. Each pack contains 10 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

NOTICE: Adama Innovations has announced discontinuation and obsolescence of this product.

You may purchase while supplies last. This product has been replaced with the AD-42-AS

With an apex sharp conductive single crystal diamond tip for high resolution topography and electrical imaging with long tip lifetime.

Each pack contains 5 probes.
This product is not in stock but you can order and it will take around two weeks to get delivered.

Tapping / Non-Contact / Force Modulation - Silicon Probe with Al reflex coating. Each pack contains 10 probes.

Tapping / Non-Contact - Silicon AFM Probe with Al reflex coating. Each pack contains 10 probes.

NOTICE: OLYMPUS Corp. announced discontinuation of this product in September 2022. This product has been directly replaced with the Titan FS Semi.

High Aspect Ratio - Tapping / Non-Contact Silicon Probe with Au reflex coating

Each pack contains 10 probes.

Force modulation probe with a polycrystalline diamond coating doped with boron for topography and electrical measurements with high tip durability. Each pack contains 10 probes

Silicon probe with PtIr coating for contact mode. Non-contact / Tapping mode. Each pack contains 10 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.

Force modulation probe with platinum silicide coating for topography and electrical measurements with enhanced tip durability. Each pack contains 10 probes

BioLever Mini: Oxidation sharpened tip apex yields sharp high aspect ratio silicon probe for higher speed imaging of bio samples in liquid.

Each pack contains 24 probes.

Solid platinum probe for electrical measurements. 4.5 kHz. 0.3 N/m. Each pack contains 5 probes.

This product is not in stock but you can preorder it. The current leadtime is 6-8 weeks.
