Quantum AC10

810.NT.QNTM-AC10

Ultra-short probe for high speed/video rate measurements in liquid.Each pack contains 10 probes.

Pre Order Icon
Pre Order NowPre Order - We dont hold stock for this item. Once your order is placed, please contact us for accurate lead times
Quantity
-
1
+
Available Qty Updated
Qty changed to max qty limit
Qty changed to min qty limit
Qty changed to step qty limit
¥ 188,000
TOTAL
Sales tax & shipping will be calculated when you check out

DESCRIPTION

f = 1200 kHz   |   k = 0.1 N/m   |   tip coating: none

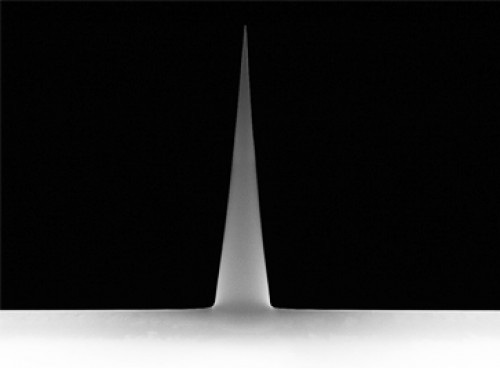

Quantum AC10 probes from Nanotools are designed for high speed/video rate applications in liquid environments. The diamond-like carbon tip provides exceptional tip durability. It is optimized for Cypher/Vero VRS & VRS1250 AFMs and is compatible blueDrive photothermal drive.

Please note: if using with a Cypher AFM, a small-spot laser or SLD must be used with this probe.

  • Consistent Sharpness​:
    Tip radius 6-7 nm guaranteed. For reliable scanning performance and unmatched tip to tip repeatability

  • Controlled orientation​:
    Tilt compensation within ±1° ensuring tip-sample perpendicularity for your specific AFM model

  • Scan location finder aid​:
    Tip position mark on cantilever backside

  • Consistent Tuning​:
    1.2 MHz rectangular quartz cantilevers (> 1.1 MHz guaranteed)

  • Diamond-like hardness and durability:
    Exceptional wear resistance guarantees negligible tip shape changes during high-speed scanning for consistent performance​.

TECHNICAL INFORMATION

  • Quantum AC10 Specifications
  • Frequency (kHz):
    1200
  • Min Frequency (kHz):
    1,100.0
  • Spring Constant (N/m):
    0.1
  • Tip Radius (nm):
    6-7
  • Tip Height (um):
    2.5
  • Tip Shape:
    Conical
  • Tip Material:
    Diamond-like carbon
  • Tip Coating:
    None
  • Reflective Coating:
    Au
  • Manufacturer:
    Nanotools
  • Length:
    7.0
