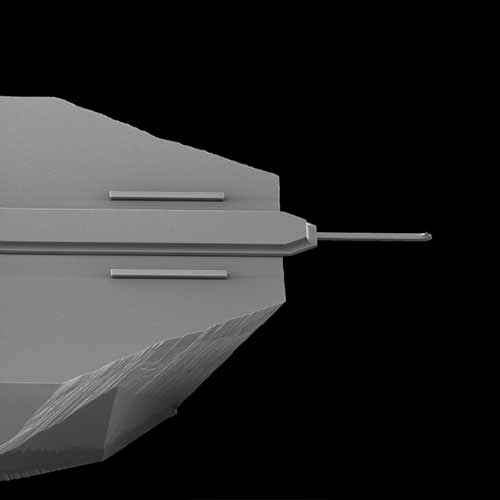

SCOUT-70-HAR-RAu

817.NN.S.70HARRAu

High Aspect Ratio - Tapping / Non-Contact Silicon Probe with Au reflex coating

Each pack contains 10 probes.

  •  Celebrate 25 years of Asylum Research with 25% off all probes for orders over 150,000 Yen.

    *Does not apply to already discounted bulk prices. Maximum discount value 150000.

    Ends 30th November.



Pre Order Icon
Pre Order NowPre Order - We dont hold stock for this item. Once your order is placed, please contact us for accurate lead times
Quantity
- 1 +
¥ 131,600
Quantity Discounts:
Buy 5 items (¥ 98,700 each)
- 0 +
¥ 4,794
Add AFM Mica Discs, V1 (10 Pack) product code: 51-1625-0931
AFM Mica Discs, V1 (10 Pack) product photo
- 0 +
¥ 4,349
Add 15mm AFM Specimen Disc (10 Pack) product code: 080.122
15mm AFM Specimen Disc (10 Pack) product photo
- 0 +
¥ 24,263
Add Mica Disk, 15mm, V1 product code: 080.172
Mica Disk, 15mm, V1 product photo
TOTAL
Sales tax & shipping will be calculated when you check out

DESCRIPTION

f = 70 kHz   |   k = 2 N/m   |   reflex coating: Au   |   tip coating: none

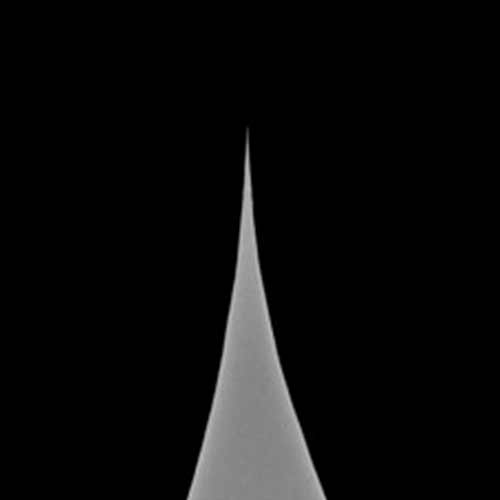

High aspect ratio: Cone angle of < 15 ° over the final 1 μm of the tip

Exemplary dimensional tolerances and tip sharpness ensure consistent and reliable high-quality images every time. Ideal for deep trench imaging with non-contact/soft tapping and force modulation modes in air or liquid, on softer samples. Gold reflex coating.

TECHNICAL INFORMATION

  • SCOUT-70-HAR-RAu Specifications
  • Frequency (kHz):
    70.0
  • Min Frequency (kHz):
    45.0
  • Max Frequency (kHz):
    80.0
  • Spring Constant (N/m):
    2.0
  • Min Spring Constant (N/m):
    0.5
  • Tip Radius (nm):
    5.0
  • Tip Height (um):
    12.0
  • Min Tip Height (nm):
    10.0
  • Max Tip Height (nm):
    13.0
  • Length, Width, Thickness (µm):
    225 x 30 x 5.5
  • Tip Shape:
    Conical
  • Tip Material:
    Silicon (n-type antimony)
  • Tip Coating:
    None
  • Reflective Coating:
    Au (5nm Ti : 40nm Au)
  • Manufacturer:
    NuNano
  • Max Spring Constant (N/m):
    3.5
  • Length:
    125.0
