SCOUT-350-HAR-RAl

817.NN.S.350HARRAl

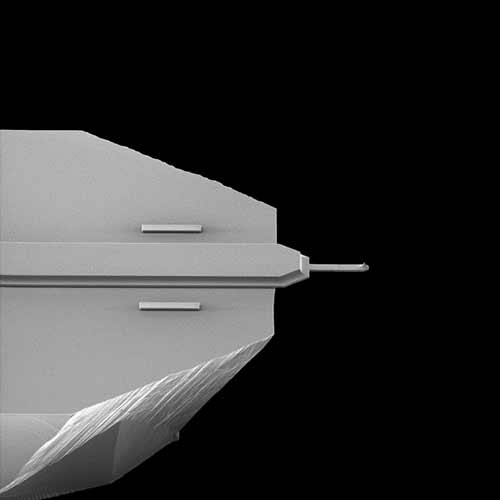

High Aspect Ratio - Tapping / Non-Contact Silicon Probe with Al reflex coating.

Each pack contains 10 probes

Pre Order Icon
Pre Order NowPre Order - We dont hold stock for this item. Once your order is placed, please contact us for accurate lead times
Quantity
-
1
+
£ 690.00
Quantity Discounts:
Buy 5 items (£ 517.50 each)
TOTAL
Sales tax & shipping will be calculated when you check out

DESCRIPTION

f = 350 kHz   |   k = 18 N/m   |   reflex coating: Al   |   tip coating: none

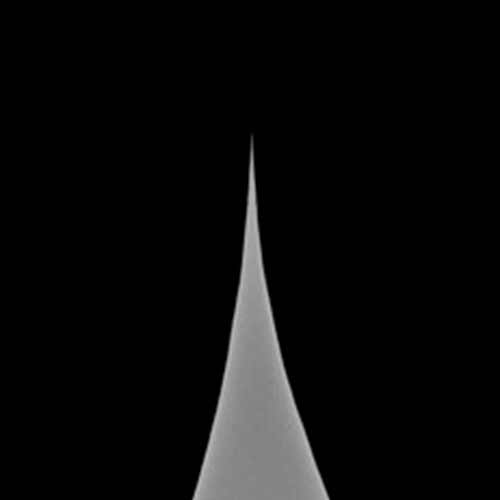

High aspect ratio: Cone angle of < 15 ° over the final 1 μm of the tip

Exemplary dimensional tolerances and tip sharpness ensure consistent and reliable high-quality images every time. Ideal for deep trench imaging with non-contact/tapping modes in air or liquid, on hard samples and stable softer samples. Aluminum reflex coating.



TECHNICAL INFORMATION

  • SCOUT-350-HAR-RAl Specifications
  • Frequency (kHz):
    350.0
  • Max Frequency (kHz):
    400.0
  • Min Frequency (kHz):
    300.0
  • Spring Constant (N/m):
    42.0
  • Max Spring Constant (N/m):
    70.0
  • Min Spring Constant (N/m):
    25.0
  • Tip Radius (nm):
    5.0
  • Tip Height (nm):
    12.0
  • Max Tip Height (nm):
    13.0
  • Min Tip Height (nm):
    10.0
  • Length, Width, Thickness (µm):
    125 x 30 x 4.5
  • Tip Shape:
    Conical
  • Tip Material:
    Silicon (n-type antimony)
  • Tip Coating:
    None
  • Reflective Coating:
    Al (40nm)
  • Manufacturer:
    NuNano
  • Length:
    125.0
