DD-FORTA

ID 815.AN.DD-FORTA

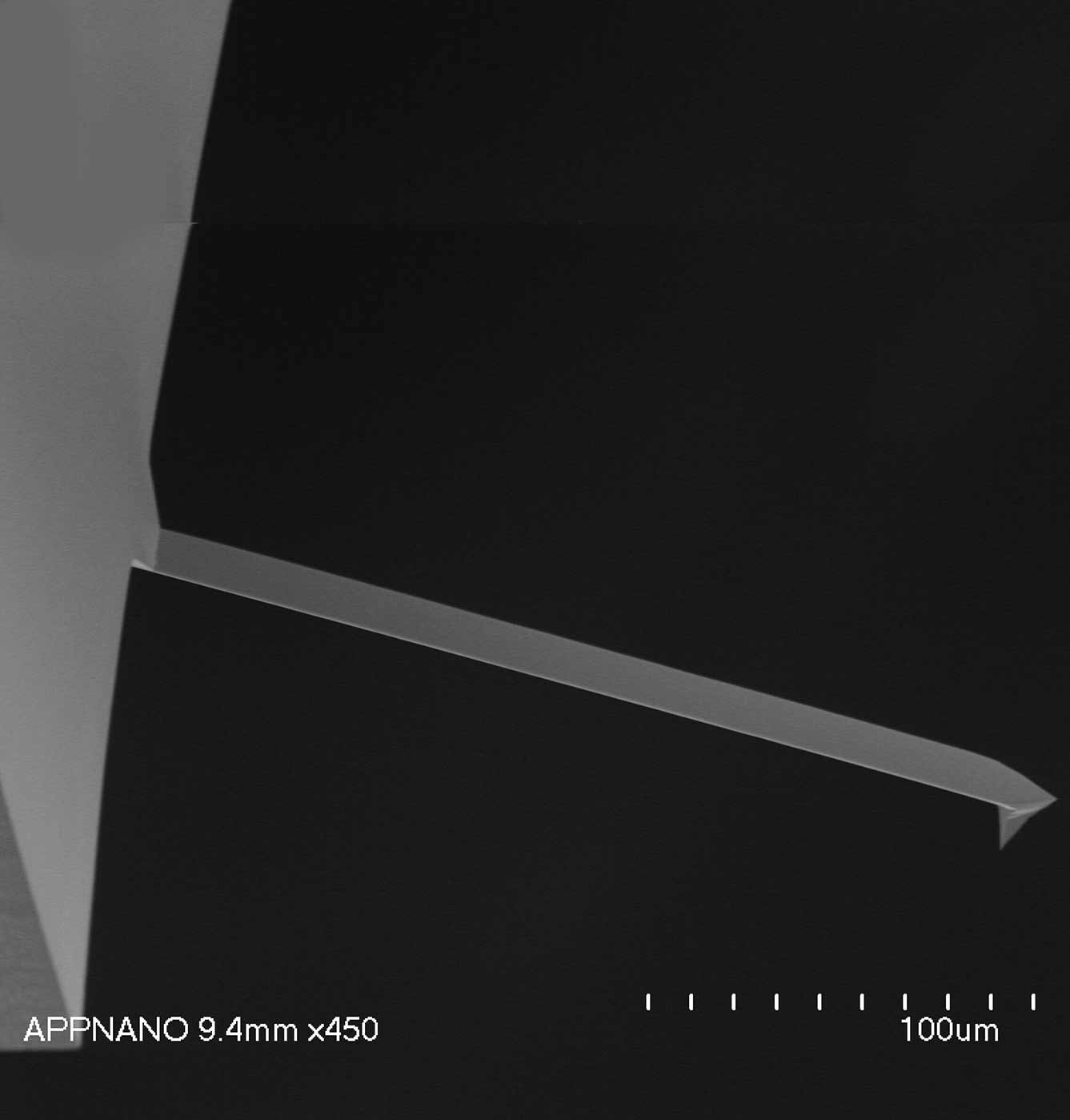

Force modulation probe with a polycrystalline diamond coating doped with boron for topography and electrical measurements with high tip durability.

Each pack contains 10 probes

Celebrate 25 years of Asylum Research with 25% off all probes for orders over $1,000.

*Does not apply to already discounted bulk prices. Maximum discount value $1000.

Ends 30th November.

In Stock 33 In Stock, Ready for dispatch

DESCRIPTION

f = 61 kHz | k = 1.6 N/m | tip coating: Doped Diamond

Conductive AFM probes coated with doped diamond, suitable for electrical characterization in both contact mode and AC modes (non-contact/soft-tapping).

The Doped Diamond (DD) Probes offer a unique combination of tip hardness and conductivity. The tip side of these probes is coated with polycrystalline diamond. The diamond film is doped with boron to make it highly conducting.

The probes are suitable in air for: conducting scanning probe microscopy (c-AFM), electric force microscopy (EFM), Kelvin Probe Force Microscopy (KPFM), and piezo-response force microscopy (PFM).

TECHNICAL INFORMATION

DD-FORTA Specifications
Frequency (kHz):
61.00
Max Frequency (kHz):
81.00
Min Frequency (kHz):
43.00
Spring Constant (N/m):
1.60
Max Spring Constant (N/m):
3.70
Min Spring Constant (N/m):
0.60
Tip Radius (nm):
100-300
Tip Height (um):
15.00
Max Tip Height (um):
16.00
Min Tip Height (um):
14.00
Tip Material:
Silicon
Tip Coating:
PtSi
Reflective Coating:
PtSi
Length, Width, Thickness (µm):
225 x 27 x 2.7
Tip Shape:
Pyramidal
Manufacturer:
AppNano
Tip Setback:
5um
Length:
225.00
