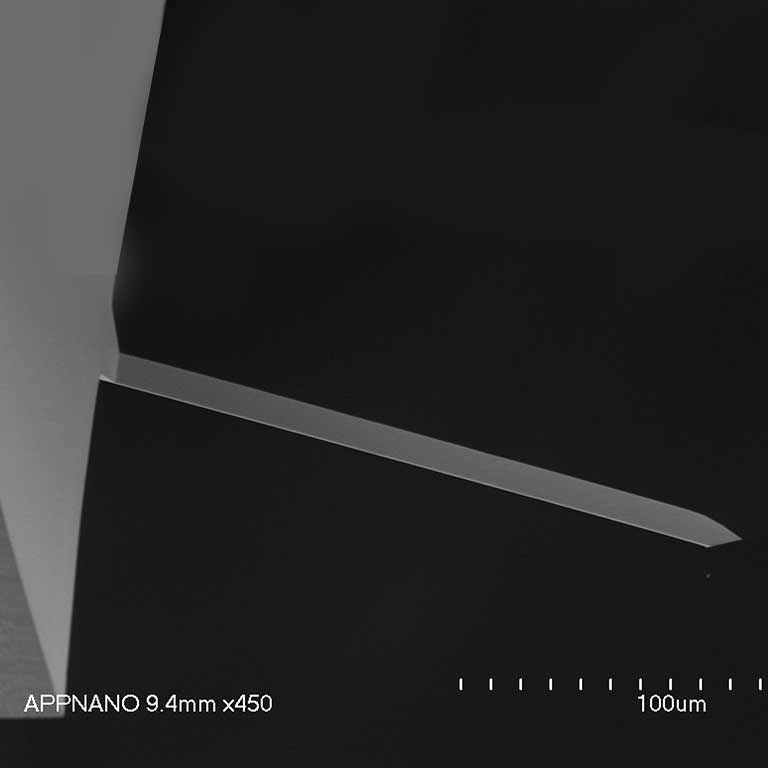

PtSi-FORT

Product ID: 815.AN.PTSI-FORT

Force modulation probe with platinum silicide coating for topography and electrical measurements with enhanced tip durability.

Each pack contains 10 probes

In Stock 33 In Stock, Ready for dispatch

DESCRIPTION

f = 61kHz | k = 1.6 N/m | tip coating: PtSi

Conductive AFM probes coated with platinum silicide (PtSi) on both sides, suitable for electrical characterization in both contact mode and AC modes (non-contact/soft-tapping).

PtSi offers significant wear resistance over traditional metallic coatings (e.g. Pt) while still preserving both tip sharpness and inherent high electrical conductivity.

The probes are suitable in air for: conducting scanning probe microscopy (c-AFM), electric force microscopy (EFM), Kelvin Probe Force Microscopy (KPFM), and piezo-response force microscopy (PFM).

TECHNICAL INFORMATION

PtSi-FORT Specifications
Frequency (kHz):
61.0
Max Frequency (kHz):
81.0
Min Frequency (kHz):
43.0
Max Spring Constant (N/m):
3.7
Min Spring Constant (N/m):
0.6
Spring Constant (N/m):
1.6
Tip Radius (nm):
<20nm
Tip Height (um):
15.0
Max Tip Height (nm):
16.0
Min Tip Height (nm):
14.0
Length, Width, Thickness (µm):
225 x 27 x 2.7
Tip Shape:
Pyramidal
Tip Material:
Silicon
Tip Coating:
PtSi
Reflective Coating:
PtSi
Manufacturer:
AppNano
Tip Setback:
5um
Length:
125.0
