TITAN 70 Pt

805.TITAN70PT

This product is a direct replacement to the discontinued OLYMPUS AC240TM-R3

Tapping / Non-Contact / Force Modulation - Silicon Probe with visible apex tip. Each pack contains 10 probes

In Stock Icon
In Stock 8 In Stock, Ready for dispatch
Quantity
-
1
+
Available Qty Updated
Qty changed to max qty limit
Qty changed to min qty limit
Qty changed to step qty limit
€ 352.00
€ 440.00     20% OFF
Quantity Discounts:
Buy 10 items (€ 308.00 each)
Buy 30 items (€ 264.00 each)
TOTAL
Sales tax & shipping will be calculated when you check out

DESCRIPTION

f = 70 kHz   |   k = 2 N/m   |   reflex coating: Pt   |   tip coating: none

Tower over your research with Oxford Instrument’s premium line of TITAN AFM probes.

TITAN 70 Pt is conductive platinum AFM probe for common electrical characterization in both contact and AC modes (non-contact/soft tapping/force modulation).

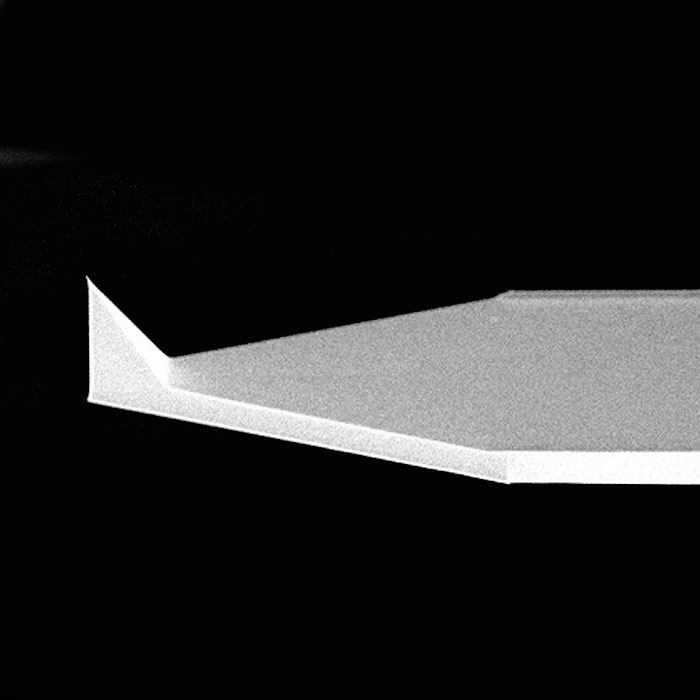

TITAN 70 Pt features a visible apex tip, which enables accurate optical alignment of the tip on fine structures of interest - as it is positioned on the very end of the cantilever and not blocked by the body of the cantilever.

Applications include conductive AFM (CAFM), electrostatic force microscopy (EFM), Kelvin probe force microscopy (KPFM), and piezoresponse force microscopy (PFM).



TECHNICAL INFORMATION

  • TITAN 70 Pt Specifications
  • Frequency (kHz):
    70.0
  • Max Frequency (kHz):
    90.0
  • Min Frequency (kHz):
    50.0
  • Max Spring Constant (N/m):
    3.5
  • Min Spring Constant (N/m):
    0.62
  • Spring Constant (N/m):
    2.0
  • Tip Radius (nm):
    20.0
  • Tip Height (um):
    14.0
  • Max Tip Height (nm):
    15.0
  • Min Tip Height (nm):
    13.0
  • Length, Width, Thickness (µm):
    240 x 40 x 2.3
  • Tip Shape:
    Tetrahedral
  • Tip Material:
    Silicon
  • Tip Coating:
    Ti / Pt
  • Reflective Coating:
    Aluminium
  • Manufacturer:
    Oxford Instruments
  • Length:
    240.0
