PtSi-NCH

804.NS.PTSI-NCH
Sharp conductive probe with PtSi coating for electrical measurements.

Each pack contains 10 probes. This product is not in stock but you can order it and it will take around two weeks to get delivered.
$ 1,599.00
Pre Order Now

Description

f = 330 kHz   |   k = 42 N/m   |   tip coating: PtSi

Platinum Silicide Probes Non-Contact / Tapping Mode - High Resonance Frequency
NANOSENSORS™ PtSi-NCH probes are designed for non-contact mode or tapping mode AFM (also known as: attractive or dynamic mode). This probe type combines high operation stability with outstanding sensitivity and fast scanning ability. For applications that require a wear resistant and an electrically conductive tip we recommend this type.

NANOSENSORS PtSi probes are suitable for C-AFM, Tunneling AFM and Scanning Capacitance Microscopy (SCM). The Platinum Silicide coating shows an excellent conductivity (almost approaching metal conductivity). The typical tip radius of curvature is around 25 nm. The probe offers unique features: Platinum silicide coating with excellent conductivity and good wear-out behavior High mechanical Q-factor for high sensitivity Alignment grooves on backside of silicon holder chip.

Details

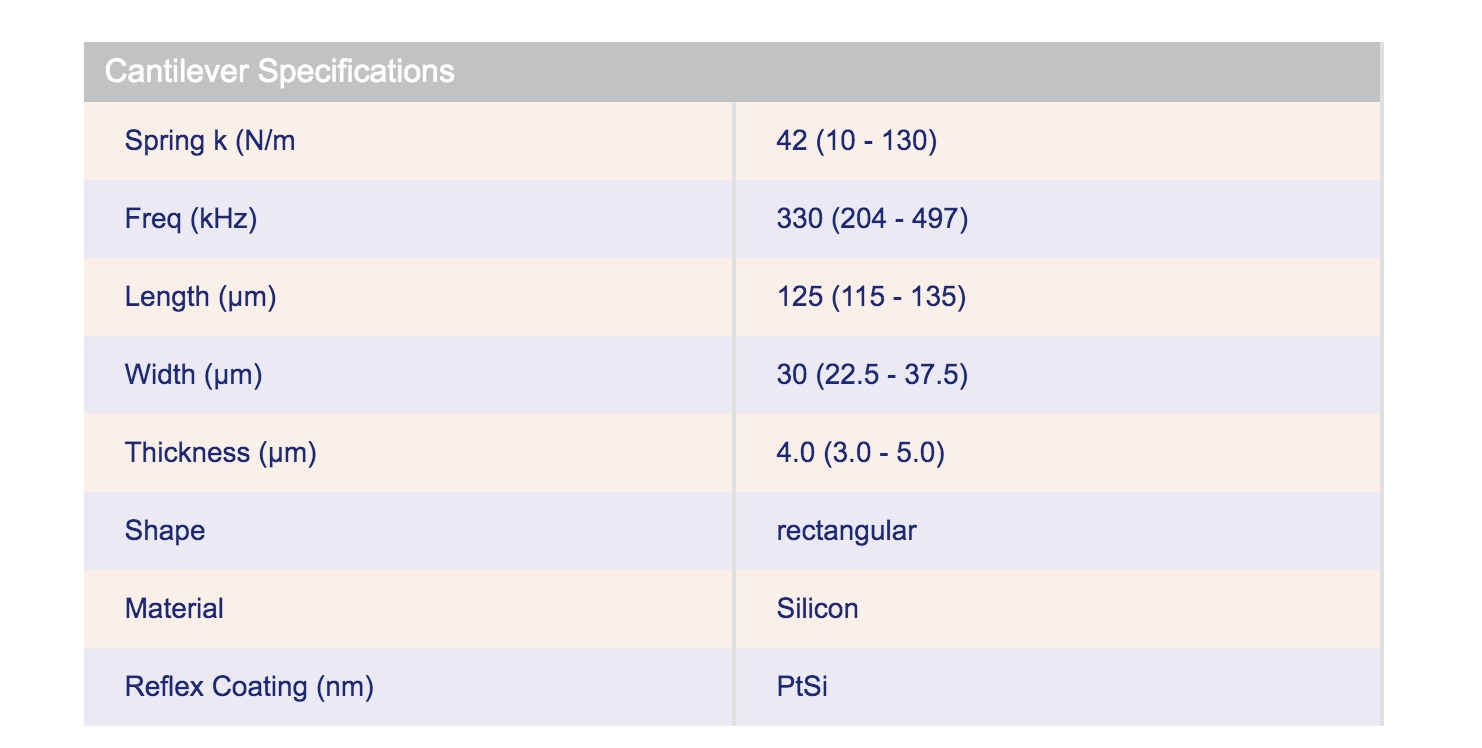

  • PtSi-NCH Specifications
  • Frequency (kHz):
    330.00
  • Max Frequency (kHz):
    497.00
  • Min Frequency (kHz):
    204.00
  • Spring Constant (N/m):
    42.00
  • Max Spring Constant (N/m):
    130.00
  • Min Spring Constant (N/m):
    1,023.00
  • Tip Radius (nm):
    25.00
  • Tip Height (um):
    12.50
  • Max Tip Height (um):
    15.00
  • Min Tip Height (um):
    10.00
  • Tip Material:
    Silicon
  • Tip Coating:
    PtSi
  • Reflective Coating:
    PtSi
  • Length, Width, Thickness (µm):
    125 x 30 x 4
  • Tip Shape:
    4 sided
  • Manufacturer:
    Nanosensors
