FS-1500AuD (Pre-Mounted)

805.FS-1500AuD.PM

Pre-mounted on carriers for use with Jupiter Discovery AFMs. Ideal for general fast scan tapping modes.

Each Pack contains 20 pre-mounted probes.

Pre Order Icon
Pre Order NowPre Order - We dont hold stock for this item. Once your order is placed, please contact us for accurate lead times
Quantity
-
1
+
Available Qty Updated
Qty changed to max qty limit
Qty changed to min qty limit
Qty changed to step qty limit
€ 1,590.00
TOTAL
Sales tax & shipping will be calculated when you check out

DESCRIPTION

Probe Specifications:

Coatings:

Usage:

Compatibility:

k

6 (1.5-21) N/m

Reflex

Au

Gas

GetReal

f

1.5 (0.7-2.0) kHz

Tip

None

Liquid



blueDrive
(Cypher / Vero)



r

10 ± 2nm









blueDrive
(Jupiter)



FS-1500AuD: Fast Scanning - High Resolution - Au Reflex coating

The FS-1500AuD is designed specifically for high-speed imaging in air and liquid. Its high resonance frequency combined with compensated quality factor delivers extreme imaging speed and outstanding sensitivity without loss of resolution or force control. The gold reflex coating ensures compatibility with advanced photothermal excitation imaging modes.

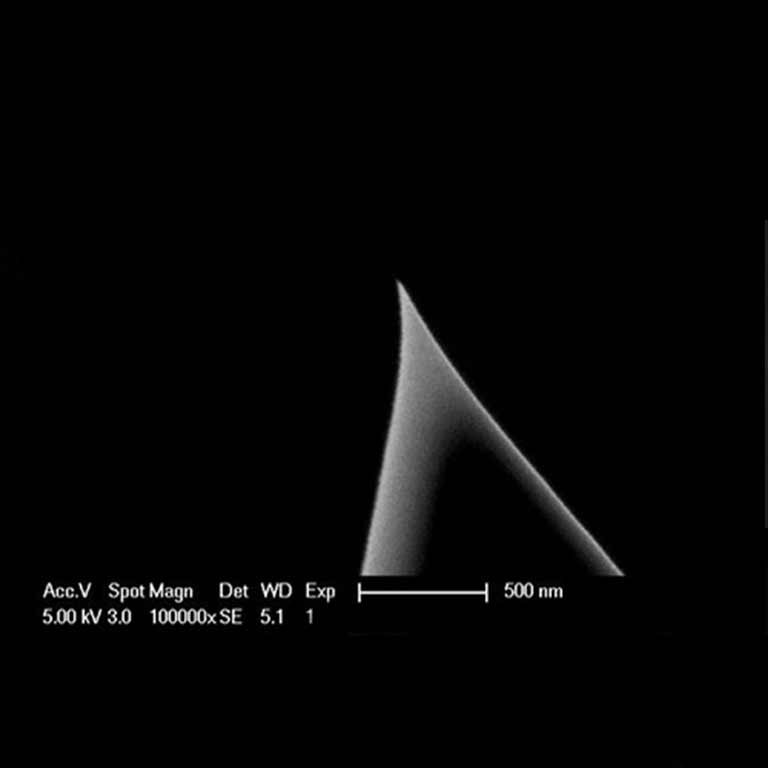

FS-1500AuD probes are made from highly doped monolithic silicon to dissipate static charge. They feature a triangular cantilever with the tip at the very end to enable easy tip positioning over your feature or region of interest. FS-1500AuDs have a tip radius <10 nm to ensure high resolution imaging capability.

Why Choose FS-1500AuD Probes from Oxford Instruments?

High speed and ultra-sharp probes help your AFM achieve its ultimate performance.

High quality and tight tolerances ensure consistent results.

Compatible with blueDriveGetReal, and GetStarted™ for simple operation.

The industry’s best customer support is always ready to help you choose the optimal probe type and conditions for your experiment.

TECHNICAL INFORMATION

  • FS-1500AuD (Pre-Mounted) Specifications
  • Frequency (kHz):
    1,500.0
  • Max Frequency (kHz):
    2,500.0
  • Min Frequency (kHz):
    700.0
  • Max Spring Constant (N/m):
    26.0
  • Min Spring Constant (N/m):
    1.52
  • Spring Constant (N/m):
    6.0
  • Tip Radius (nm):
    10.0
  • Tip Height (um):
    3.0
  • Max Tip Height (nm):
    4.0
  • Min Tip Height (nm):
    2.0
  • Length, Width, Thickness (µm):
    35 x 42 x 0.8
  • Tip Shape:
    Triangular
  • Tip Material:
    Silicon
  • Tip Coating:
    None
  • Reflective Coating:
    Cr/Au
  • Manufacturer:
    Oxford Instruments
  • Length:
    35.0
